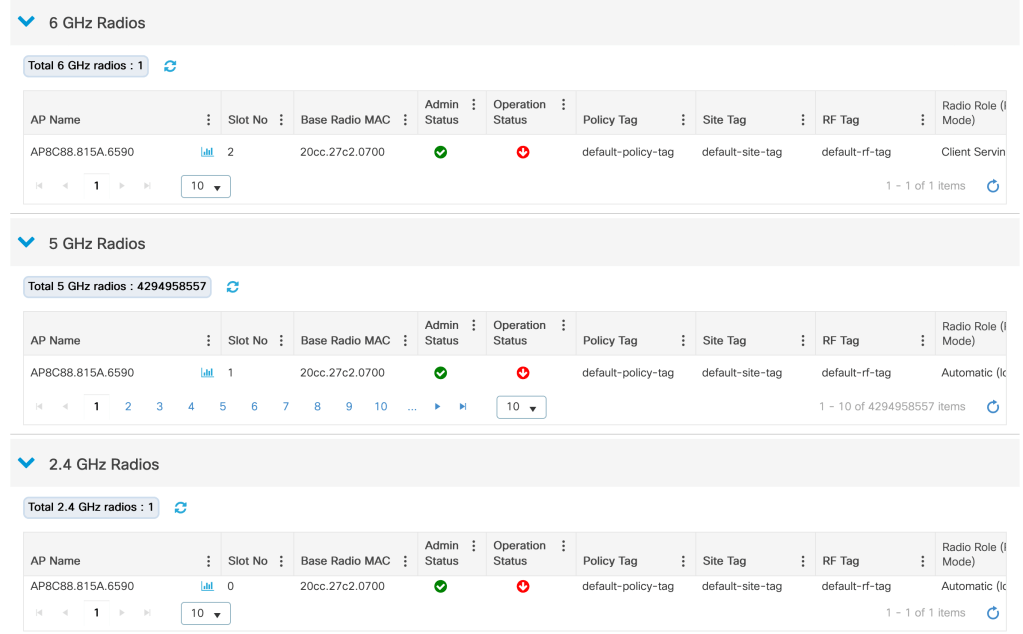

My AP has joined the WLC, I have verified that WLANs are up with all 3 bands are selected, all 3 bands are up, WLANs are mapped with correct tags but my AP radios show down as seen below… Most likely a Regulatory domain mismatch.

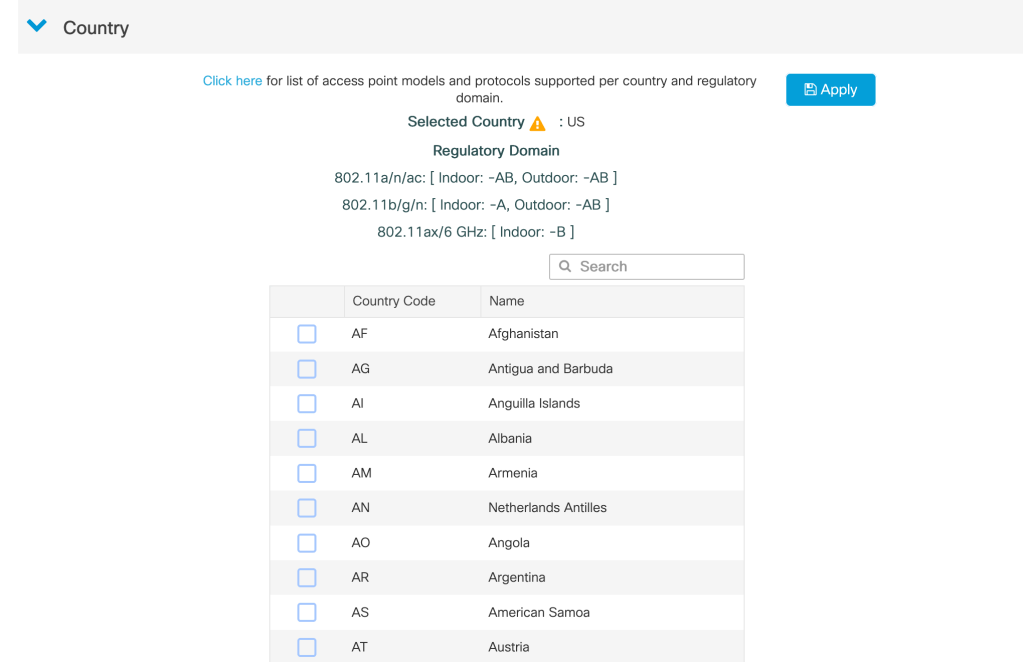

Configuring ‘Country’ in country list
Configure the list of countries from which the APs will operate on this WLC under- Configuration>Wireless>Access Points>Country

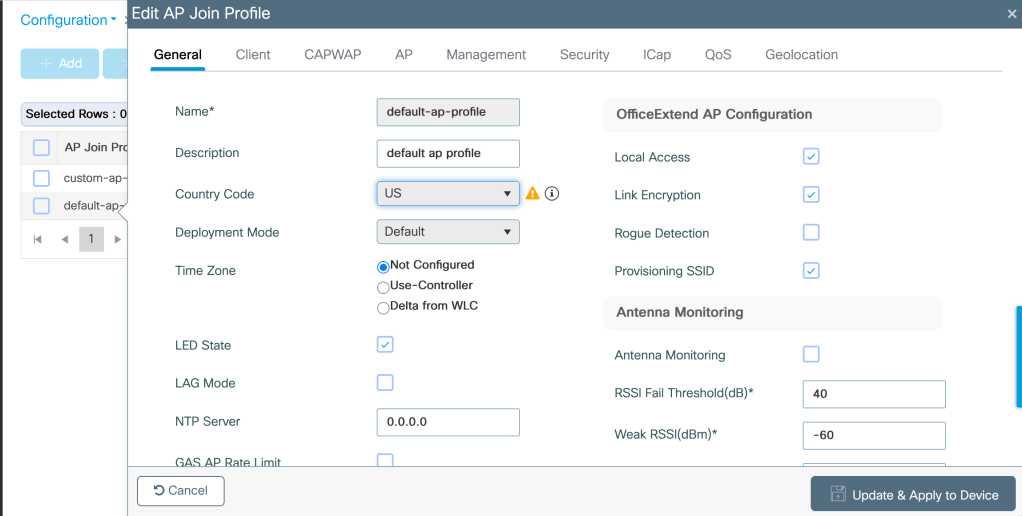

Configuring ‘Country Code’ in AP Join Profile
Configure the ‘Country Code’ under AP Join profile- Configuration>Tags and Profiles>AP Join
The country code under AP join profile should match with the regulatory domain on the AP. If there is a mismatch in regulatory domain and country code, the AP will join the WLC but radios will be down.

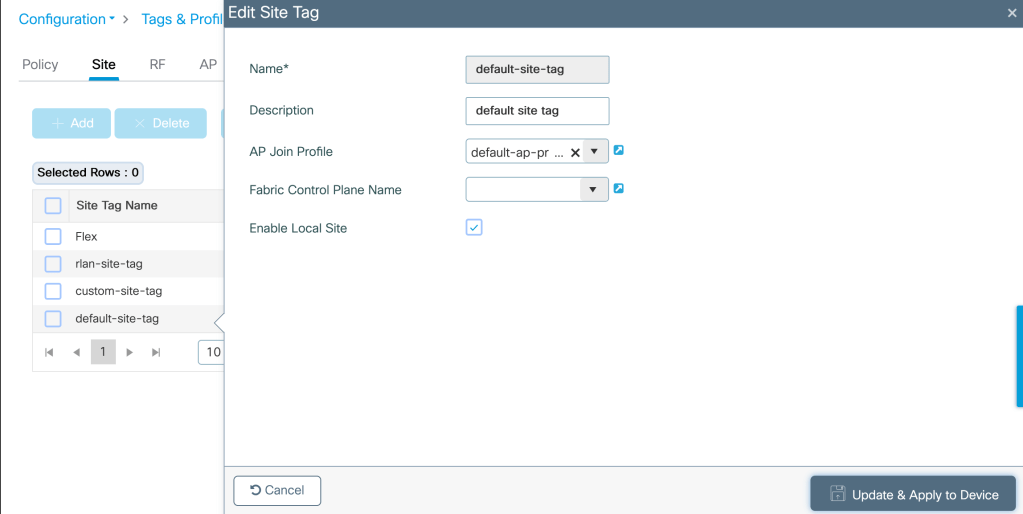

Mapping AP Join Profile to Site Tag

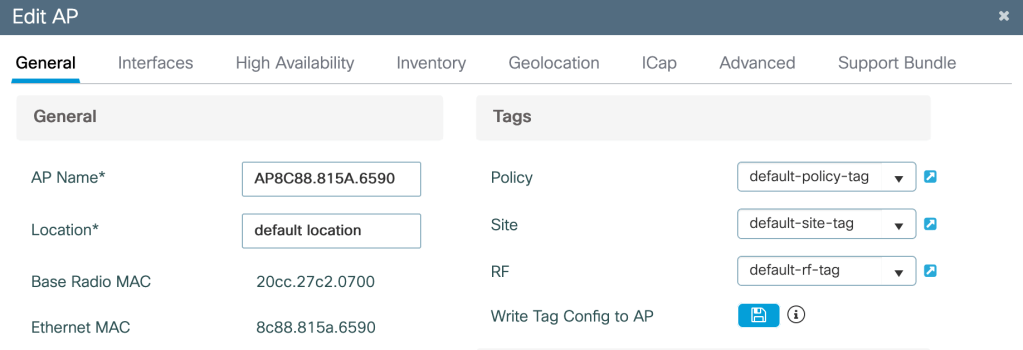

Mapping Site Tag to AP
Radios when Country code matches regulatory domain
Slot 0 Radio shows up
Slot 1 Radio shows up
Slot 2 Radio shows up
